Laboratory Freezer Options

PRESERVATION

Temperature Recording

Temperature Recorders for Ultra-Low Temperature Freezers (-150°C/-152°C/-80°C/-86°C)

Option model Description Applicable product Photo
MTR-85H ·Recording range: -100°C to +50°C
·2-month Strip Chart Recorder		 ·No mounting bracket required:
MDF-594, MDF-794
·Mounting bracket MDF-S3085 required:
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DC500VX, MDF-DC700VX, MDF-U33V, MDF-U54V, MDF-U55V, MDF-U74V, MDF-DU900V, MDF-DU900VC, MDF-DU300H, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL, MDF-C8V1
·Sensor cover MTR-DU700SF required:
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DU900V, MDF-DU900VC, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL
·Sensor cover MTR-C8 required:
MDF-C8V1, MDF-DU300H		 MTR-85H
MTR-155H ·Recording range: -170°C to +30°C ·No mounting bracket required:
MDF-1156
·Mounting bracket MDF-S30150 required:
MDF-C2156VAN		 MTR-155H

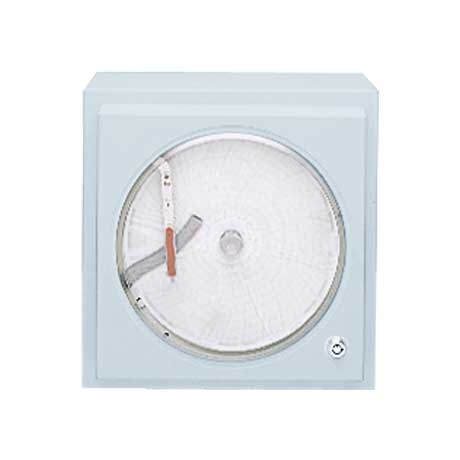

MTR-G85A
MTR-G85C		 ·Recording range: -100°C to +40°C
·1-day/7-day/32-day Circular Chart Recorders		 ·No mounting bracket required:
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DC500VX, MDF-DC700VX, MDF-U33V, MDF-U54V, MDF-U55V, MDF-U74V, MDF-DU900V, MDF-DU900VC, MDF-DU300H, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL, MDF-C8V1
·Sensor cover MTR-DU700SF required:
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DU900V, MDF-DU900VC, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL
·Sensor cover MTR-C8 required:
MDF-C8V1, MDF-DU300H		 MTR-G85A

MTR-G85A

Temperature Recorders for Biomecial Freezers (-30°C/-40°C)

Option model DescriptionC Applicable product Photo

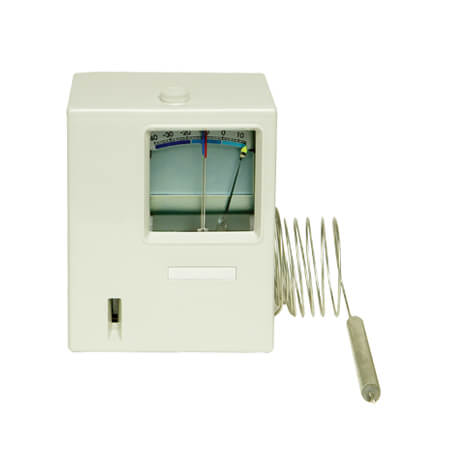

MTR-4015LH ·Recording range: -40°C to +14C°
·32-day Strip Chart Recorder		 ·No mounting bracket required:
MDF-MU300H, MDF-U334, MDF-U443
·Mounting bracket MPR-S30 required:
MDF-U5312, MDF-U5412, MDF-U5412H,
MDF-U731M, MDF-MU339, MDF-MU539,
MDF-MU539D, MDF-MU500H
·Mounting bracket MDF-S3040 required:
MDF-137, MDF-237, MDF-437 		MTR-4015LH
MTR-85H ·Recordingrange:-100°C to+50°C
·2-month Strip Chart Recorder		 ·No mounting bracket required:
MDF-U443		 MTR-85H
MTR-G85A
MTR-G85C		 ·Recordingrange: -100°C to +40°C
·1-day/ 7-day/ 32-day Circular Chart Recorder		 ·Mounting bracket MPR-S7 required:
MDF-U5312, MDF-U5412, MDF-U5412H,
MDF-U731M, MDF-MU339, MDF-MU539,
MDF-MU539D, MDF-MU500H
·Mounting bracket MDF-S740 required:
MDF-137, MDF-237, MDF-437
·Mounting bracket MDF-S740T required (for external mounting) :
MDF-U334, MDF-MU539D, MDF-MU300H
 MTR-G85A

MTR-G85A

Recorder Mounting Brackets

Option model Description Applicable product Photo
MDF-S30150 For Temp. Recorder MTR-155H ·Ultra-Low Temperature Freezer
MDF-C2156VAN

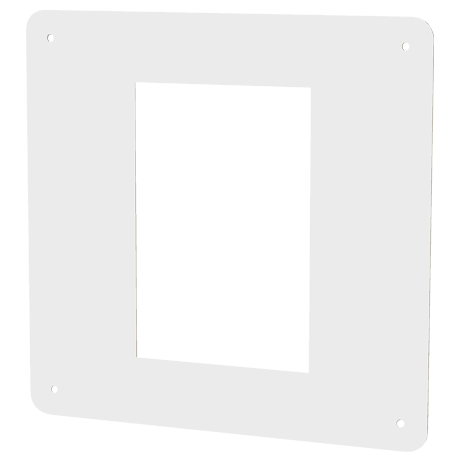

MDF-S3085 For Temp. Recorder MTR-85H ·Ultra-Low Temperature Freezer
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DC500VX, MDF-DC700VX, MDF-U33V, MDF-U54V,
MDF-U55V, MDF-U74V, MDF-DU900V,
MDF-DU900VC, MDF-DU300H, MDF-DU502VH,
MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL, MDF-C8V1		 MDF-S3085
MPR-S7 For Temp. Recorder MTR-G85A/MTR-G85C ·Biomedical Freezer
MDF-U5312, MDF-U5412, MDF-U5412H, MDF-U731M, MDF-MU339, MDF-MU539, MDF-MU539D,
MDF-MU500H
MDF-S740 For Temp. Recorder MTR-G85A/MTR-G85C ·Biomedical Freezer
MDF-137, MDF-237, MDF-437
MDF-S740T For Temp. Recorder MTR-G85A/MTR-G85C ·Biomedical Freezer
MDF-U334, MDF-MU539D, MDF-MU300H

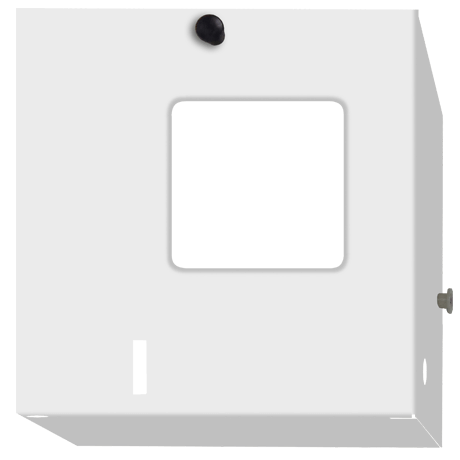

MPR-S30 For Temp. Recorder MTR-4015LH ·Biomedical Freezer
MDF-U5312, MDF-U5412, MDF-U5412H, MDF-U731M, MDF-MU339, MDF-MU539, MDF-MU539D, MDF-MU500H		 MPR-S30

MPR-S30
MDF-S3040 For Temp. Recorder MTR-4015LH ·Biomedical Freezer
MDF-137, MDF-237, MDF-437

Recording Paper

Option model Description Applicable product Photo
RP-06 For Temp. Recorder MTR-0621LH See Temperature Recorder table RP-06

RP-06
RP-40 For Temp. Recorder MTR-4015LH See Temperature Recorder table
RP-85 For Temp. Recorder MTR-85H See Temperature Recorder table
RP-155 For Temp. Recorder MTR-155H See Temperature Recorder table
RP-G04 For Temp. Recorder MTR-G04A See Temperature Recorder table
RP-G3504 For Temp. Recorder MTR-G3504A See Temperature Recorder table
RP-G85 For Temp. Recorder MTR-G85A/G85C See Temperature Recorder table

Ink Pen

Option model Description Applicable product Photo
PG-R For Temp. Recorder MTR-G85A/G85C/G04A
Red pen x 2pcs		 See Temperature Recorder table
PG-RB For Temp. Recorder MTR-G3504A
Red & Blue x 2pcs each		 See Temperature Recorder table
DF-38FP For Temp. Recorfer MTR-85H See Temperature Recorder table

Sensor Cover

Option model Description Applicable product Photo
MTR-C8 For Temp. Recorder MTR-85H, MTR-G85A/MTR-G85C ·Ultra-Low Temperature Freezer
MDF-C8V1, MDF-DU300H
MTR-DU700SF For Temp. Recorder MTR-85H, MTR-G85A/MTR-G85C ·Ultra-Low Temperature Freezer
MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU702VX, MDF-DU702VXC, MDF-DU900V, MDF-DU900VC, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VH, MDF-DU702VHL

Storage Management

Storage Baskets (For Chest type Biomedical Freezer)

Option model Description Applicable product Photo
MDF-13B2 ·Set of two
·Outer dimensions (W × D × H):
255 x 420 x 205mm
·Inner dimensions (W × D × H):
210 x 370 x 200mm		 ·Biomedical Freezer
MDF-137, MDF-237		 MDF-13B

MDF-13B
MDF-13B3 ·Set of three
·Outer dimensions (W × D × H):
255 x 420 x 205mm
·Inner dimensions (W × D × H):
210 x 370 x 200mm		 ·Biomedical Freezer
MDF-137, MDF-237
MDF-43B2 ·Set of two
·Outer dimensions (W × D × H):
275 x 530 x 205mm
·Inner dimensions (W × D × H):
230 x 480 x 200mm		 ·Biomedical Freezer
MDF-437
MDF-43B3 ·Set of three
·Outer dimensions (W × D × H):
275 x 530 x 205mm
·Inner dimensions (W × D × H):
230 x 480 x 200mm		 ·Biomedical Freezer
MDF-437

Inventory Racks (For Upright Ultra-Low Temperature Freezers)

Option model Description Applicable product
(Rack capacity)		 Photo
IR-220U ·Box capacity :
2" box x 20
·External Dimensions (W × D × H):
140 × 561 × 277 mm		 MDF-U33V (6), MDF-U54V/MDF-U55V (8), MDF-U74V (12), MDF-DU302VX (12), MDF-DU900V (14), MDF-DU300H (6), MDF-DU500VH (8), MDF-DU700VH/MDF-DU701VH (12)
IR-224U ·Box capacity : 2" box x 24
·External Dimensions (W × D × H):
140 × 561 × 331 mm		 MDF-U54V/MDF-U55V (8), MDF-U74V (12), MDF-DU502VX (16), MDF-DU702VX (24), MDF-DU900V (14), MDF-DU500VH (8), MDF-DU700VH/MDF-DU701VH (12), MDF-DU702VH (24)
IR-312U ·Box capacity :
3" box x 12
·External Dimensions (W × D × H):
140 × 561 × 277 mm		 MDF-U54V/MDF-U55V (8), MDF-U74V (12)
IR-316U ·Box capacity :
3" box x 16
·External Dimensions (W × D × H):
140 × 561 × 331 mm		 MDF-U54V/MDF-U55V (8), MDF-U74V (12), MDF-DU502VX (16), MDF-DU702VX (24), MDF-DU702VH (24)

Storage Racks (For Upright Ultra-Low Temperature Freezers)

Option model Description Applicable product
(Rack capacity)		 Photo

Drawers for bottom compartment (For Upright Ultra-Low Temperature Freezers)

Option model Description Applicable product
(Maximum number of sets)		 Photo

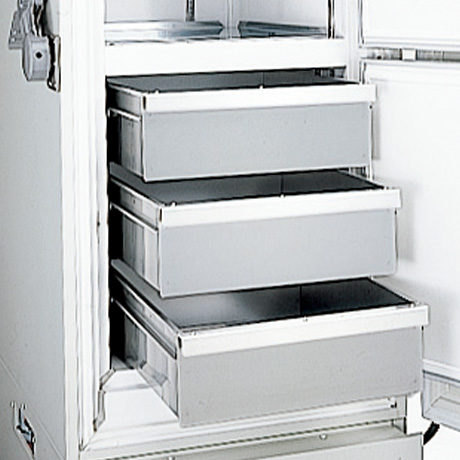

MDF-50R ·Internal Dimensions (W × D × H):
540 × 483 × 150mm
·Material: Stainless steel		 MDF-U54V/U55V (1), MDF-DU502VX (1) MDF-30R

MDF-30R
MDF-30R ·Internal Dimensions (W × D × H):
410 × 482 × 150mm
·Material: Stainless steel		 MDF-U33V (1)

Storage Containers, Baskets (For Biomedical Freezers)

Option model Description Applicable product Photo

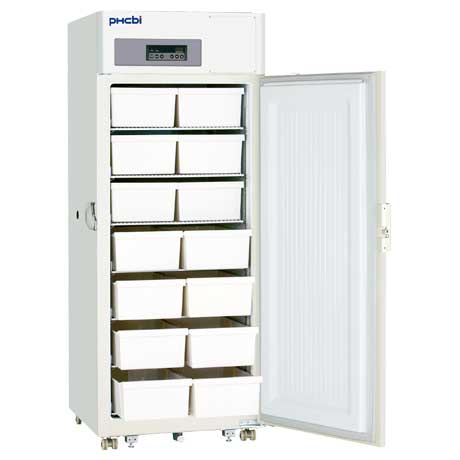

MDF-T07SC 2 baskets are included.
14 baskets are needed to fill the entire cabinet.		 MDF-U731M, MDF-U731 MDF-T07SC
MDF-03SC ·Storage Container x2 pcs / set
·Internal Dimensions (W × D × H):
280 x 552 x 157 mm		 MDF-MU339(*), MDF-MU339HL
(* Storage container x 6pcs are standard accessory of MDF-MU339)		 MDF-03SC,MDF-05SC
MDF-05SC ·Storage Container x2 pcs / set
·Internal Dimensions (W × D × H):
280 x 552 x 157 mm		 MDF-MU539(*), MDF-MU539D(*), MDF-MU539HL, MDF-U549DHL
(* Storage container x 12pcs are standard accessory of MDF-MU539 and MDF-MU539D)

Inventory Rracks (For Chest type Ultra-Low Temperature Freezers)

Option model Description Applicable product
(Rack capacity)		 Photo
IR-207C ·Box capacity :
2" box x 7
·External Dimensions (W × D × H):
144 × 142 × 405mm		 MDF-C8V1 (6)
IR-209C ·Box capacity :
2" box x 9
·External Dimensions (W × D × H):
144 × 142 × 518mm		 MDF-1156 (9)
IR-210C ·Box capacity :
2" box x 10
·External Dimensions (W × D × H):
144 × 142 × 592mm		 MDF-C2156VAN (14)
IR-213C ·Box capacity :
2" box x 13
·External Dimensions (W × D × H):
144 × 142 × 747mm		 MDF-DC500VX (28), MDF-DC700VX (36), MDF-594 (24), MDF-794 (36)
IR-305C ·Box capacity :
3" box x 5
·External Dimensions (W × D × H):
144 × 142 × 405mm		 MDF-C8V1 (6)

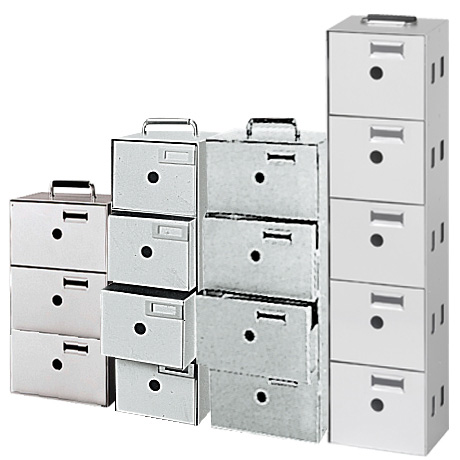

Storage Racks (For Chest Freezers)

Option model Description Applicable product
(Rack capacity)		 Photo
MDF-19SC ·Case Dimensions (W × D × H):
207 × 144 × 413mm
·Number of Drawers: 3 pcs		 MDF-C8V1 (5) MDF-19SC

Backup

Backup Kits For Ultra-Low Temperature Freezers (-150°C/-152°C/-80°C/-86°C)

Option model Description Applicable product Photo

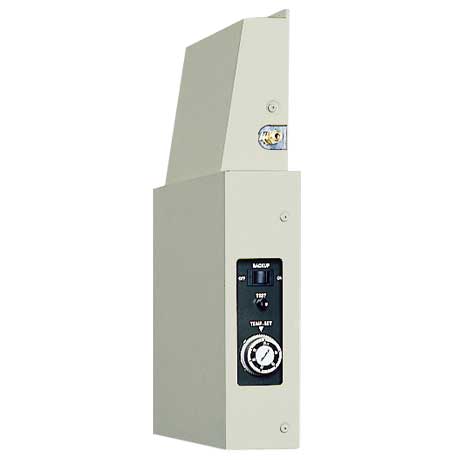

CVK-UB2 ·Liquid CO2 back-up MDF-U33V, MDF-U54V, MDF-U55V, MDF-U74V, MDF-594, MDF-794 CVK-UB2

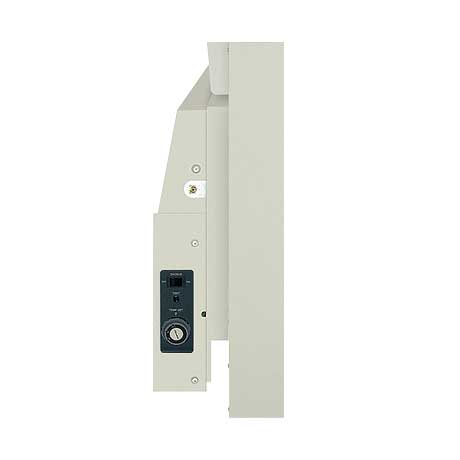

CVK-UB4 ·Liquid CO2 back-up
·Mounting kit: MDF-UBK		 MDF-C8V1 CVK-UB4

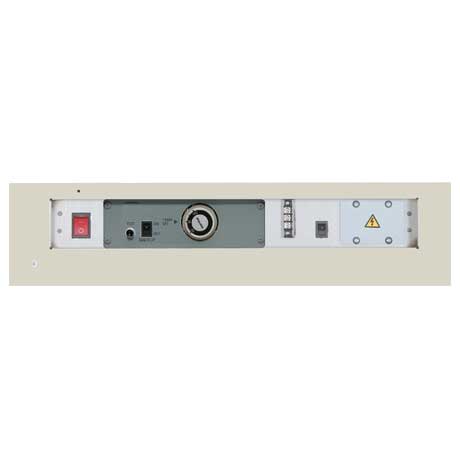

MDF-UB5 ·Liquid CO2 back-up MDF-DC500VX, MDF-DC700VX MDF-UB5

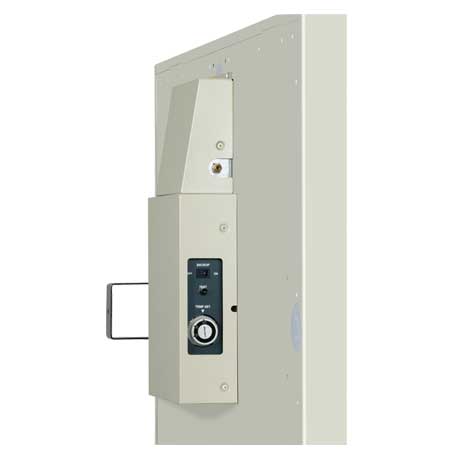

MDF-UB6B ·Liquid CO2 back-up MDF-DU900V, MDF-DU900VC MDF-UB6B

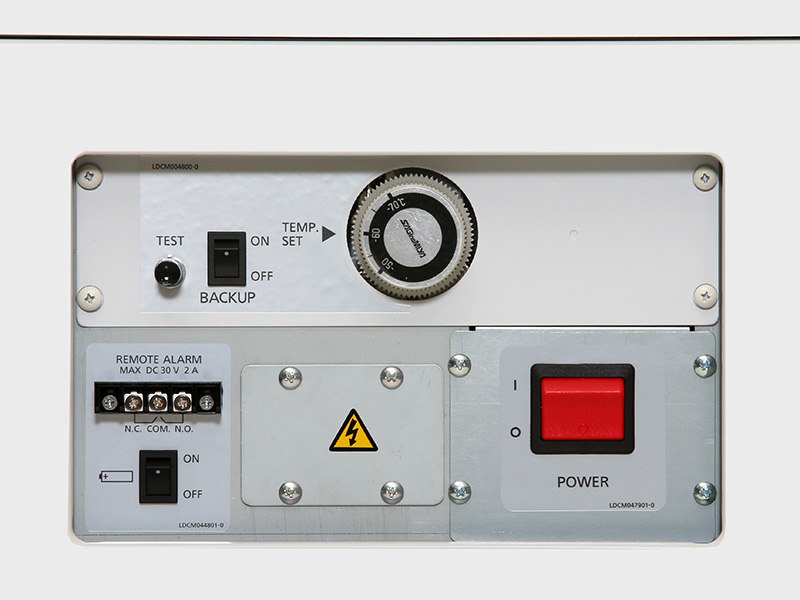

MDF-UB7 ·Liquid CO2 back-up MDF-DU302VX, MDF-DU502VX, MDF-DU502VXC, MDF-DU502VH, MDF-DU502VHL, MDF-DU702VX, MDF-DU702VXC, MDF-DU702VH, MDF-DU702VHL MDF-UB7

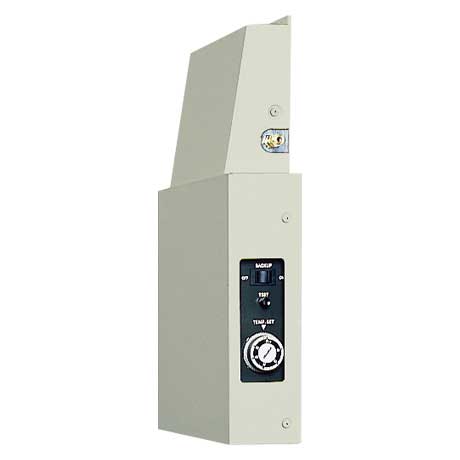

CVK-UBN2 ·Liquid N2 back-up MDF-U33V, MDF-U54V, MDF-U55V, MDF-U74V, MDF-594, MDF-794 CVK-UBN2

Mounting Backup kit

Option model Description Applicable product Photo
MDF-UBK for CVK-UB4 Liquid CO2 Back-up Kit MDF-C8V1

Inner Door Configuration

Inner Door Kit For Upright Ultra-Low Temperature Freezers (-150°C/-152°C/-80°C/-86°C)

Option model Description Applicable product Photo

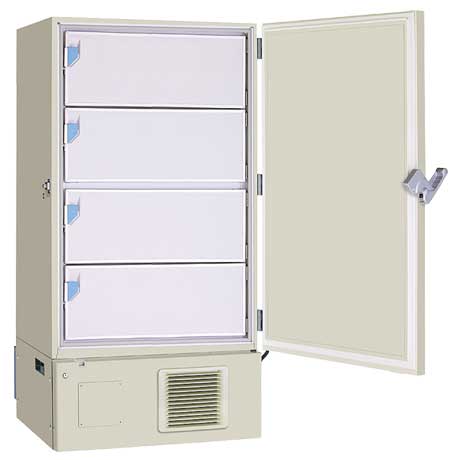

MDF-7ID MDF-U74V MDF-7ID

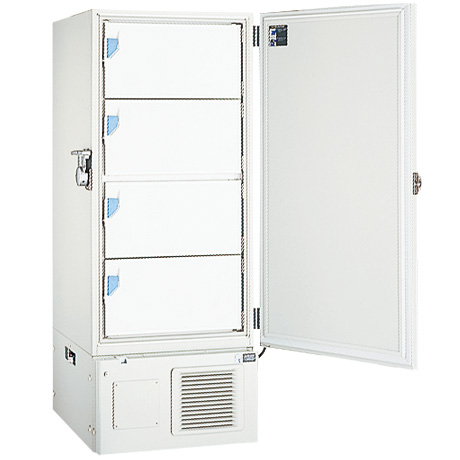

MDF-5ID MDF-U54V, MDF-U55V MDF-5ID

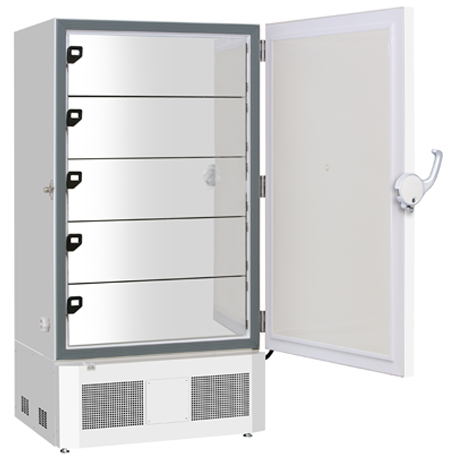

MDF-7ID5 ·5 inner doors make 1 set. MDF-7ID5 includes an additional shelf. MDF-DU702VX, MDF-DU702VXC, MDF-DU702VH, MDF-DU702VHL MDF-7ID5

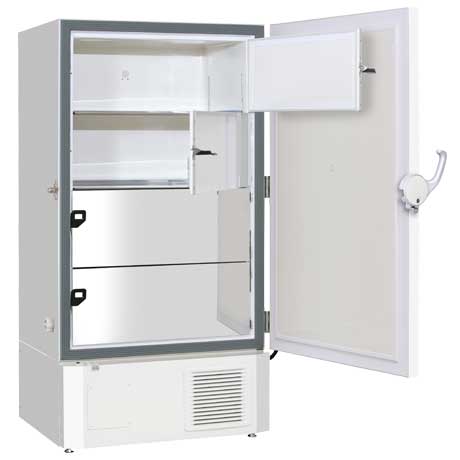

MDF-7ID4 ·4 inner doors make 1 set. MDF-DU702VX, MDF-DU702VXC, MDF-DU702VH, MDF-DU702VHL MDF-7ID4

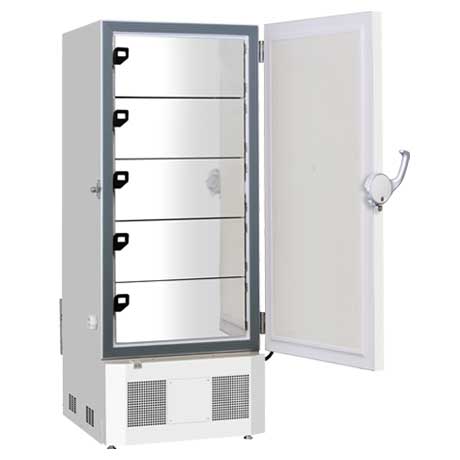

MDF-5ID5 ·5 inner doors make 1 set. MDF-5ID5 includes an additional shelf.
 MDF-DU502VX, MDF-DU502VXC, MDF-DU502VH, MDF-DU502VHL MDF-5ID5
MDF-5ID4 ·4 inner doors make 1 set. MDF-DU502VX, MDF-DU502VXC, MDF-DU502VH, MDF-DU502VHL MDF-5ID4

∗Please be aware cooling capacity will be less than specified if small inner doors are installed. Installation of the kit may effect usable storage capacity.
