FACSCOPE® B

CUR-CRFCB-01

Features

Leveraging the power of AI for more accurate cell counting

Automatic Cell Counter - FACSCOPE® B

FACSCOPE® B is an automatic, stand-alone, cell counting system that is based on a bright-field microscopy. It leverages AI through an advanced recognition algorithm, that enables users to observe various cells accurately.

With FACSCOPE® B, irregular cells and aggregated cells can be clearly identified, as well as live and dead cells, making it a valuable tool for various cell-based studies.

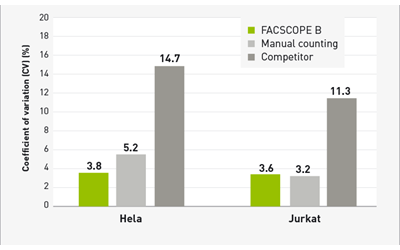

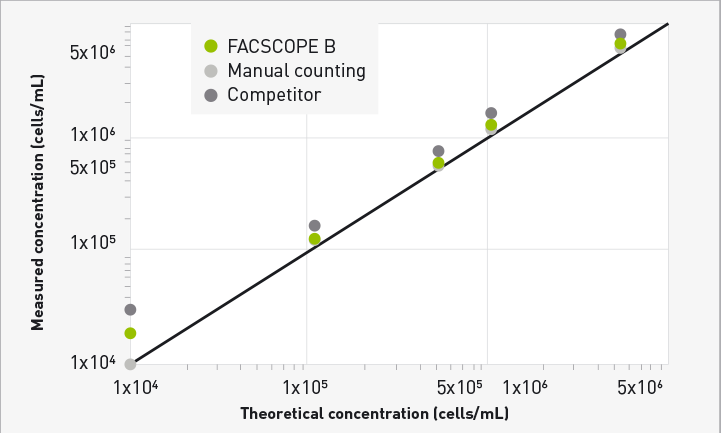

Enhanced accuracy

FACSCOPE® B works by automatically focusing on the grid of the slide and counting within this frame. This is a unique technique not seen in other cell counters that improves accuracy as it always detecting a constant plane.



Optimal convenience

FACSCOPE® B overcomes the inconveniences associated with conventional haemocytometers through features that include autofocus, customized pre-sets, various counting modes, and user-friendly software.

And FACSCOPE® B analyses larger counting volumes than haemocytometers and other types of cell counters. In precise mode, the counting volume is up to nine times larger.

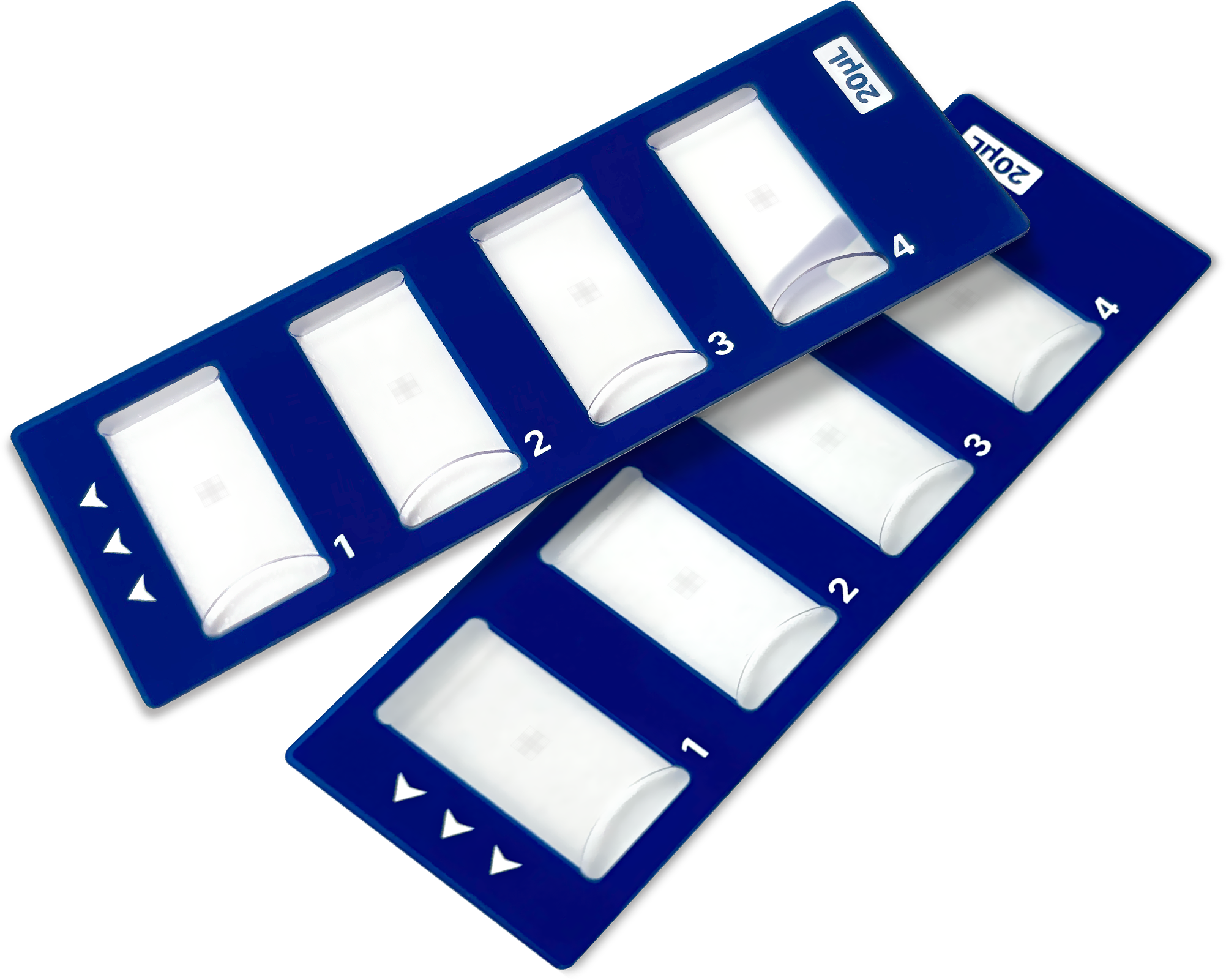

In addition, the system includes disposable counting slides that eliminate the need to wash slides.

Latest high-performance addition to cell analysis portfolio

PHC Europe continually deepens its commitment to advancing life science by providing laboratories with a growing number of options in cell analysis equipment. The FACSCOPE®B Automated cell counter is the latest addition to its high-quality portfolio in this area.

Workflow

FACSCOPE® B Workflow

PHC supports researchers with fully integrated solutions that elevate every phase of the cell culture process. Our cutting-edge technologies—such as IncuSafe incubators for maintaining ideal growth conditions, ULT freezers for reliable long-term preservation, and the Facscope® B for accurate, automated cell counting—are designed to boost efficiency, consistency, and cell viability.

Manual cell counting is often time-consuming and prone to human error, leading to inconsistent results and unnecessary delays. The Facscope® B automated cell counter eliminates these challenges, streamlining workflows and freeing researchers to concentrate on more advanced, high-impact experiments—ultimately enhancing overall productivity and research outcomes.

 Contact



 Request your DEMO

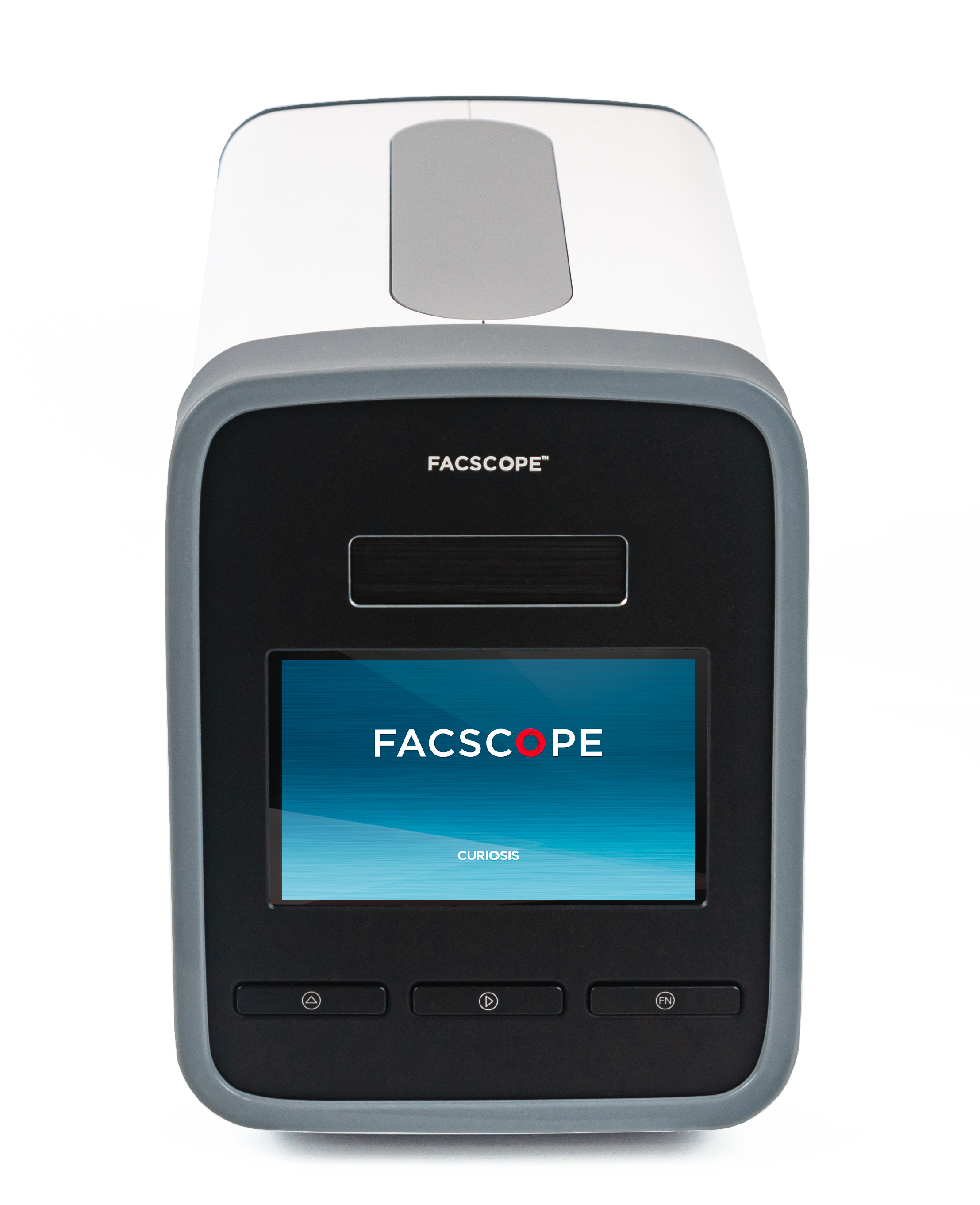

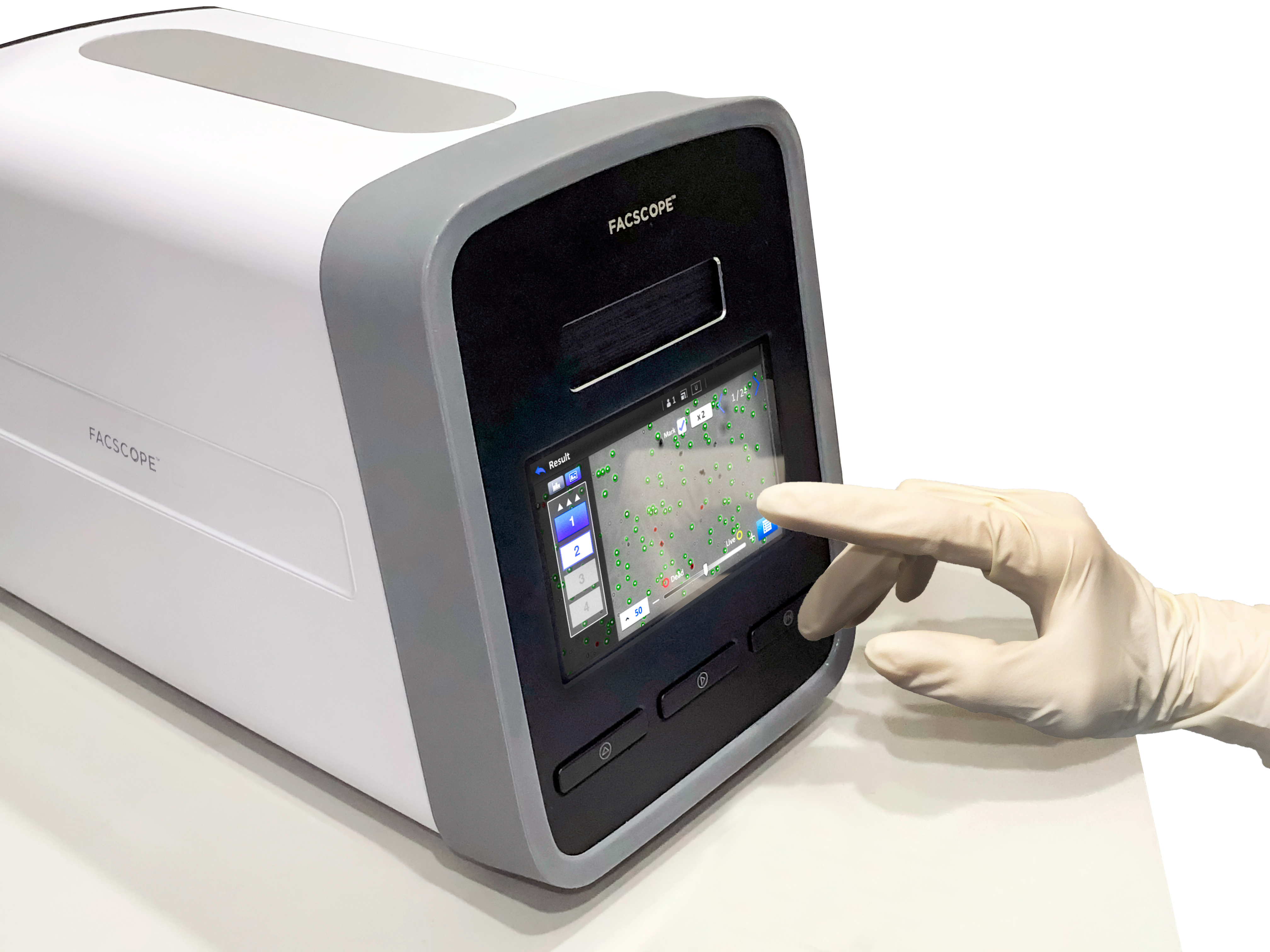

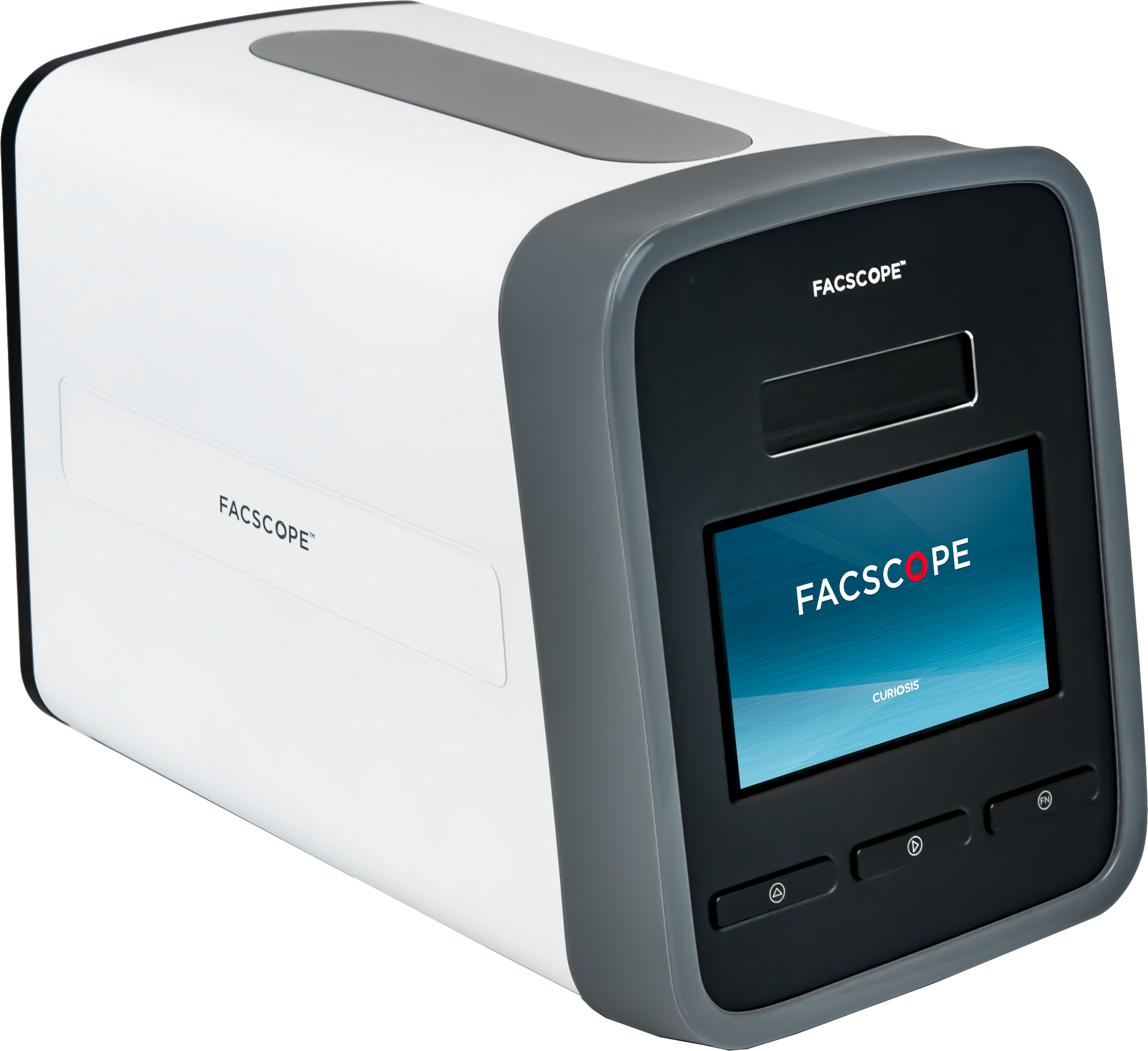

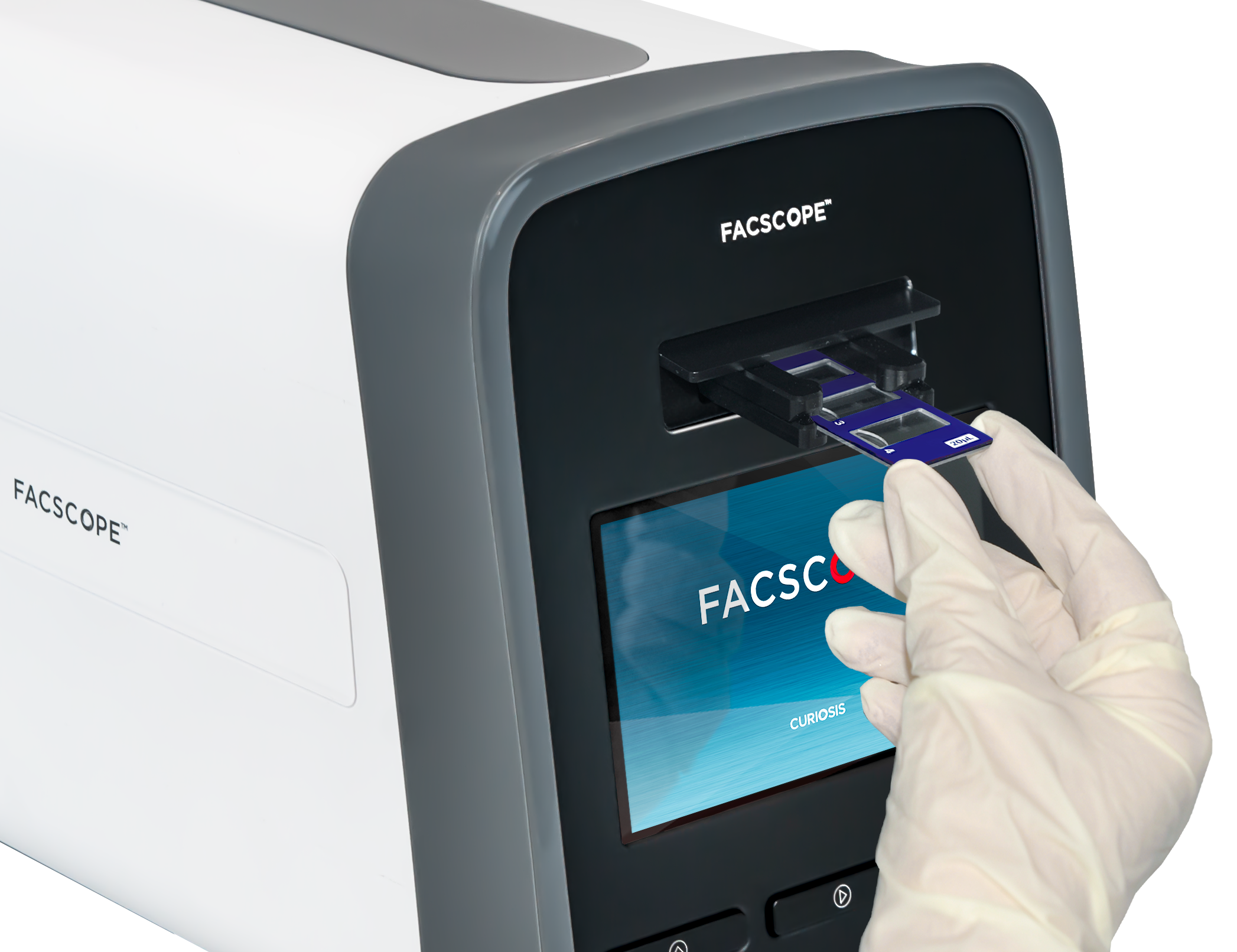

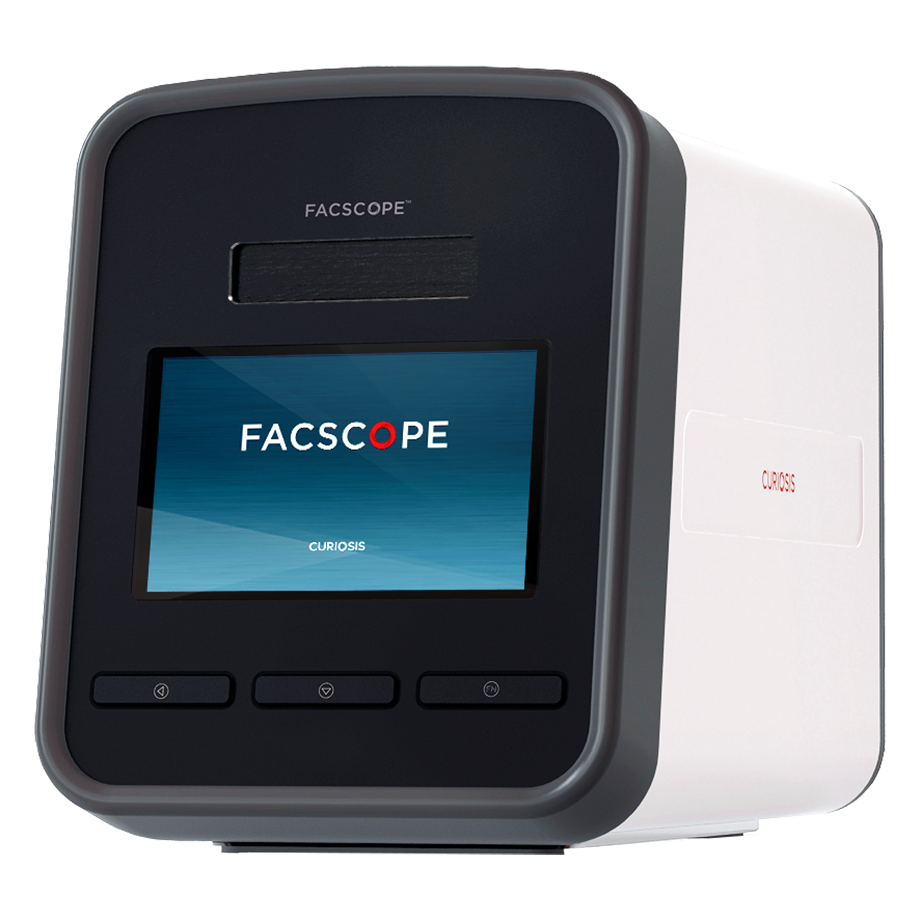

Product Photos

Specfications

FACSCOPE® B

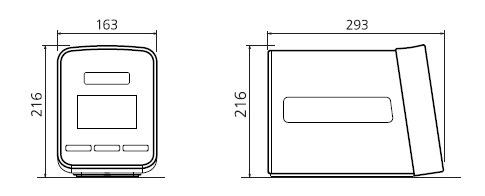

External Dimensions (WxDxH) 163 × 293 × 216 mm
Weight [Kg] 5.0
Objective Lens 4X
Imaging modes Bright field
Light source LED
Camera 5MP CMOS
Measuring concentration range 1 x 10⁴ ~ 1 x 10⁷ cells/mL
Detectable cell diameter 5 ~ 60μm
Measuring speed* Quick mode: ≈ 20s per test
Normal mode: ≈ 30s per test
Precise mode: ≈ 100s per test
Counting area Quick mode: ≈ 0.15 μL
Normal mode: ≈ 0.9 μL
Precise mode: ≈ 3.6 μL
Model number Description
CUR-CRFCB-01 FACSCOPE® B, Automatic cell counter (Brightfield)

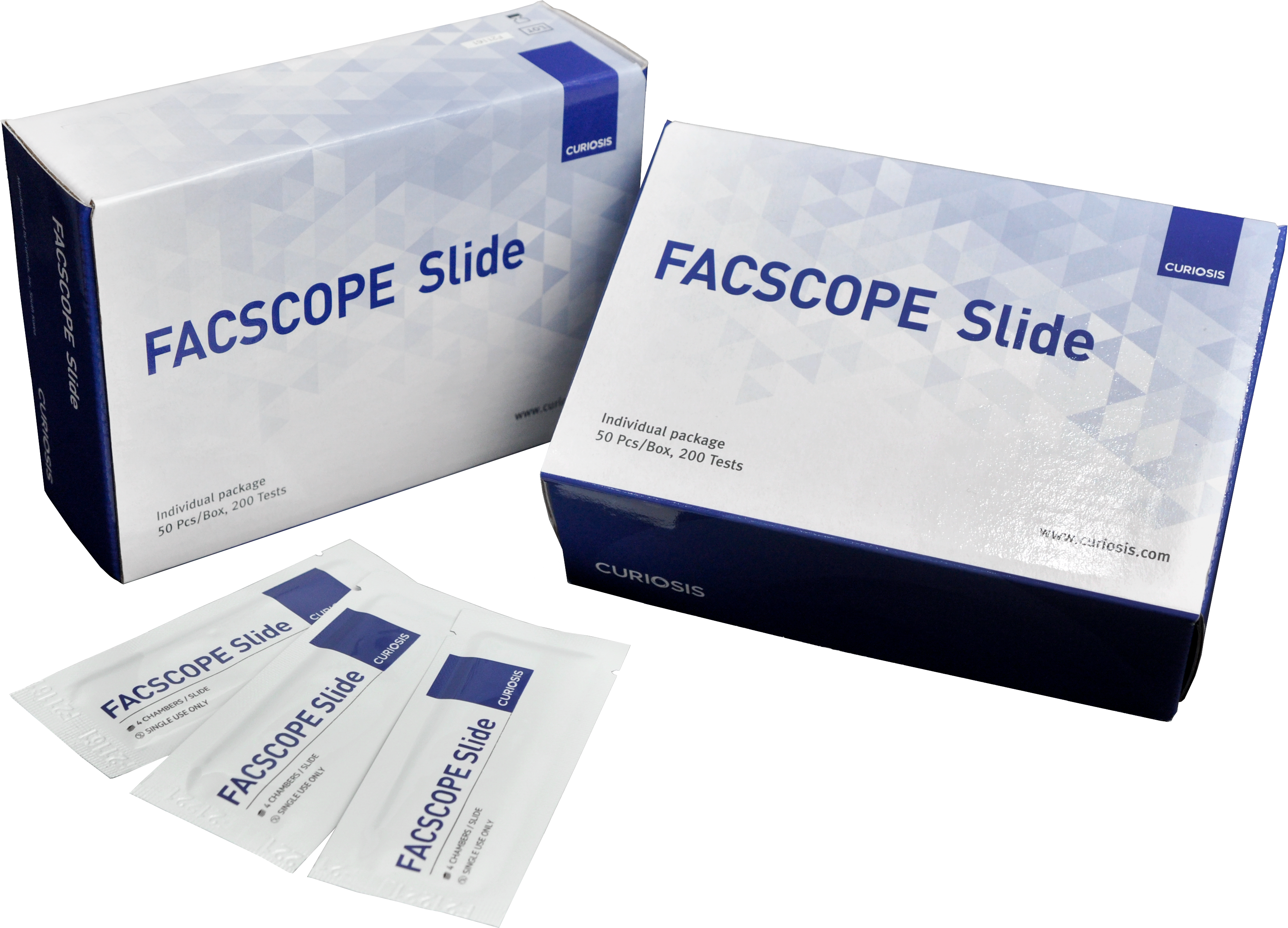

CUR-CRFCB-CSD50 FACSCOPE® Slide, Disposable slide for FACSCOPE® B 50 slide/box (200 test)

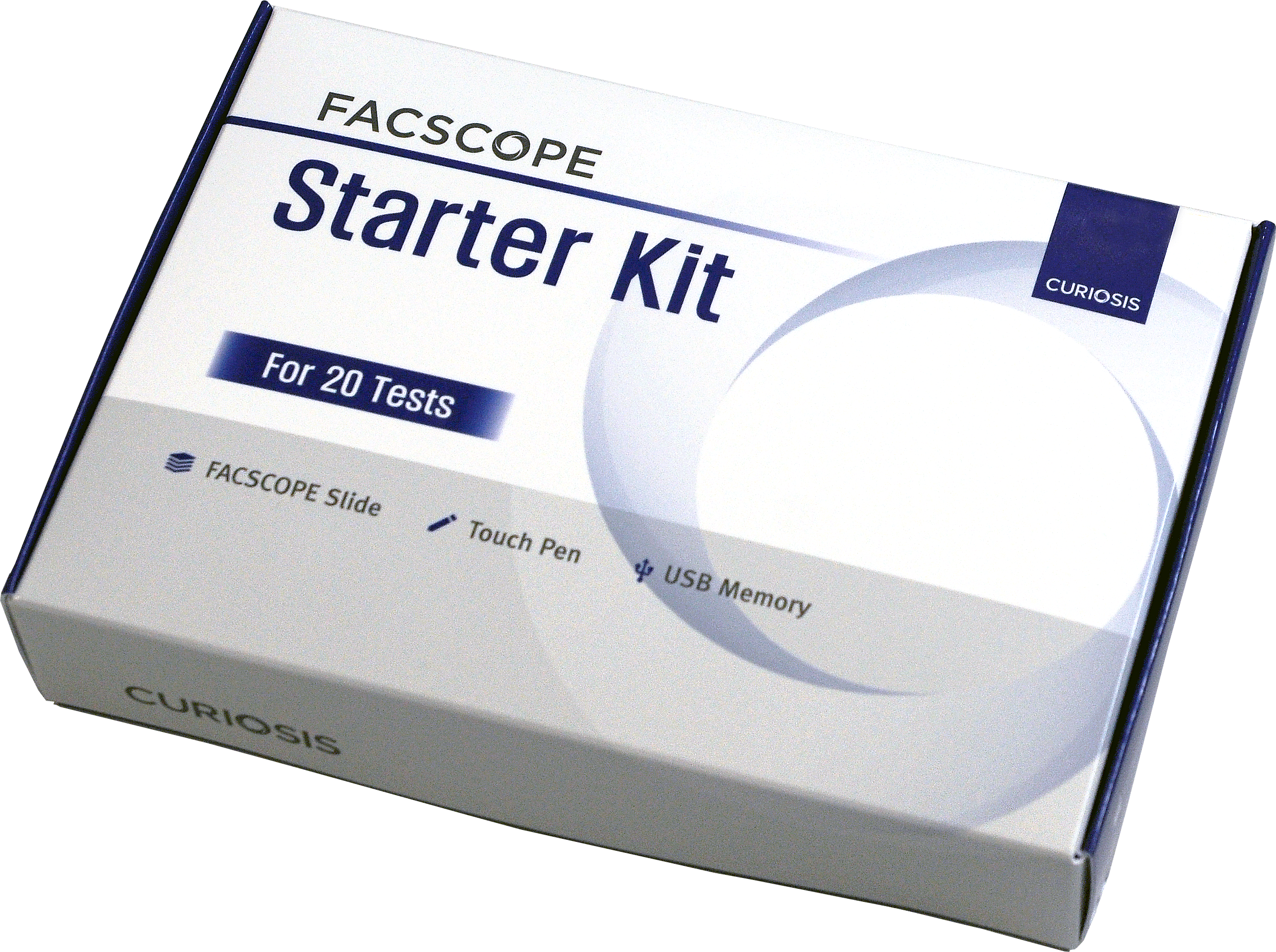

CUR-CRFCB-SK01 FACSCOPE® Starter Kit, FACSCOPE® Slide 5ea + touch-pen + USB Memory
CUR-CRFCB-SS01 FASCOPE® Standard slide, IQ/OQ package (Bead QC Slide, Certificate of Analaysis)

Dimensions
